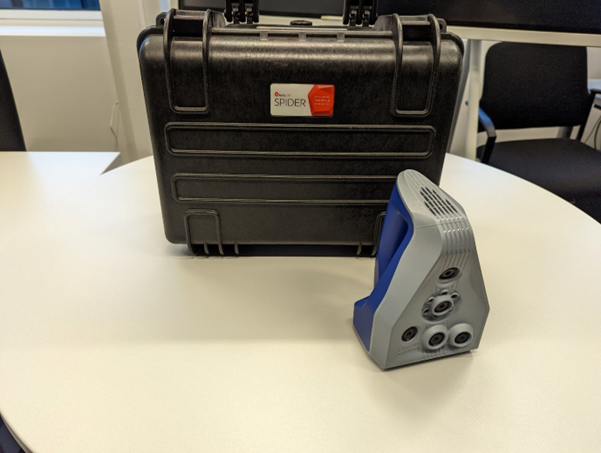

Hand-held 3D Scanner; Artec Space Spider, Artec 3D
The Artec Space Spider is a high-resolution handheld structured-light 3D scanner for capturing small to medium-sized objects with any complex surface with up to 0.05 mm accuracy and 0.1 mm resolution.
- General description: structured-light 3D capturing device
- Application aim: 3D capturing of small and medium-sized objects (e.g. height: 5 cm - 1 m)
- Mobility: mobile; 1 package
- Equipment specifics:
- 3D point accuracy: 0.05 mm
- 3D resolution: 0.1 mm
- 3D reconstruction rate: 7.5 fps
- Working distance: 0.2 - 0.3 m
- Colours: 24 bpp
- Texture resolution: 1.3 MP
- 3D light source: Blue LED
- 2D light source: White 6 LED array
- Processing software: Artec Studio
- Application requirements:
- preferably diffuse light setting, indoor or outdoor
- fast computer or notebook
- turntable (optional)
- no targets required
- one power outlet
- Sample required: no
- Contact required: no
- Limitations:
- not suitable for reflective or translucent surfaces
- Set up time: 15 mins
- Average time for measuring: depends on the object’s size, 10 mins to several hours
- Average time for processing: depends on the object’s size, 30 mins to several hours
- Output:
- OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
- STEP, IGES
- Contact: Eric Werner, eric.werner"AT"uni-hamburg.de
- Location of the equipment: Data-Linking (Warburgstr. 28, Hamburg)
