VIS-NIR Spectrometer; JAZ-EL350, Ocean Optics

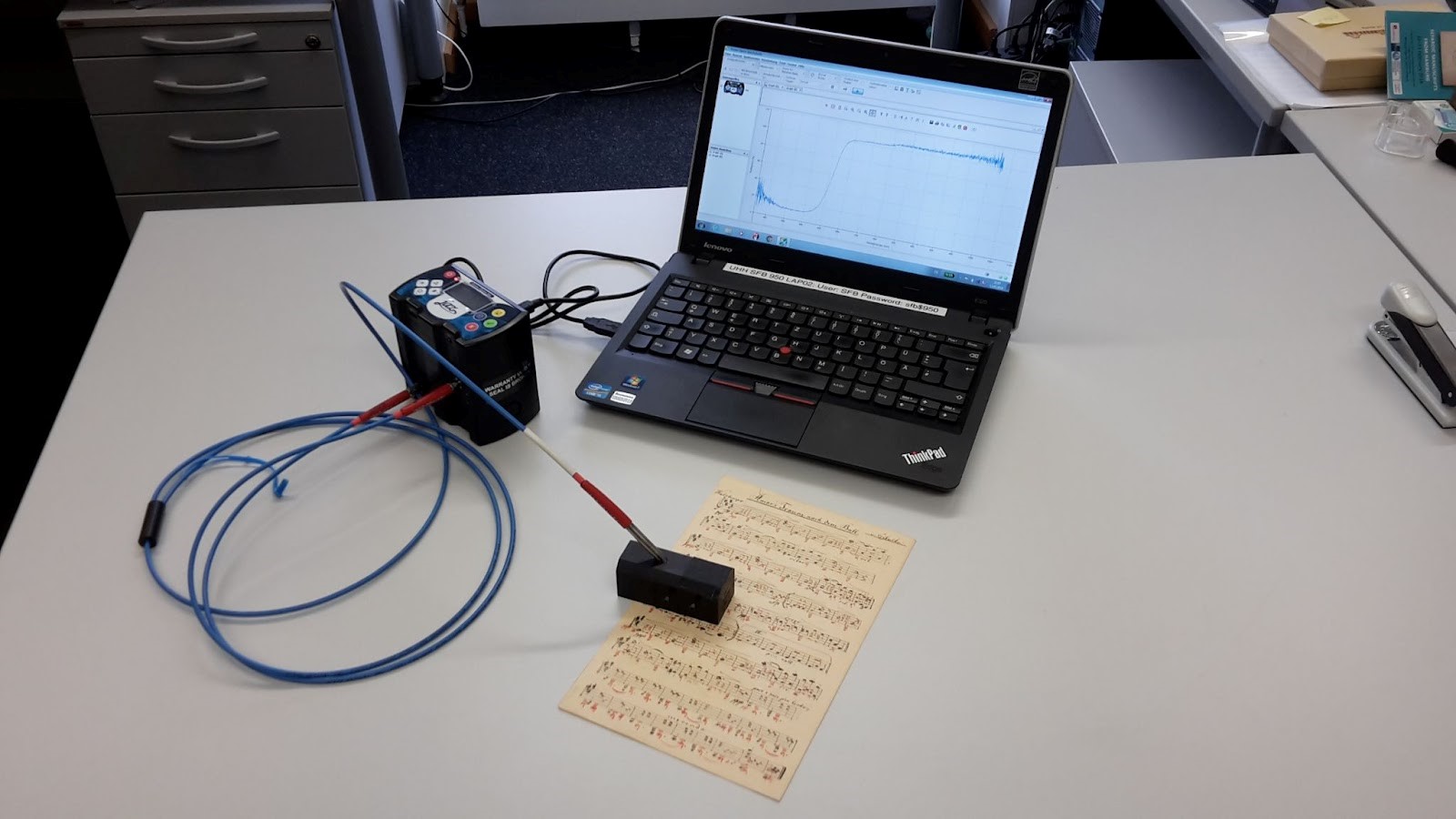

Spectral Photometer JAZ-EL350 (Ocean Optics)
- General description: visible and near-infrared spectrophotometer
- Application aim: identification of pigments and dyes
- Mobility: mobile 352 g, 10.9 x 6.4 x 5.7 cm
- Equipment specifics:
- tungsten-halogen light source
- Spectral range: 350-1000 nm
- Spectral resolution: 1.3 nm
- VNIR detector: 350-1000 nm 2048-pixel (Sony ILX511B) linear CCD array detector
- Signal to noise ratio: 250:1
- Scanning time: 4 ms to 65 s
- Application requirements: power supply
- Sample required: no
- Contact required: no (focal length: 1.5 cm), yes (when used with probe and camera holder)
- Interaction spot dimensions: 5.5 mm
- Limitations: none
- Set up time: 5 min
- Average time for measuring: seconds
- Average time for processing: 2-5 min per spectrum
- Software package: SpectraSuiteTM
- Output: .txt files
- Contact: Sebastian Bosch, sebastian.bosch"AT"uni-hamburg.de
- Location of the equipment: CSMC Lab (Warburgstr. 28, Hamburg)
