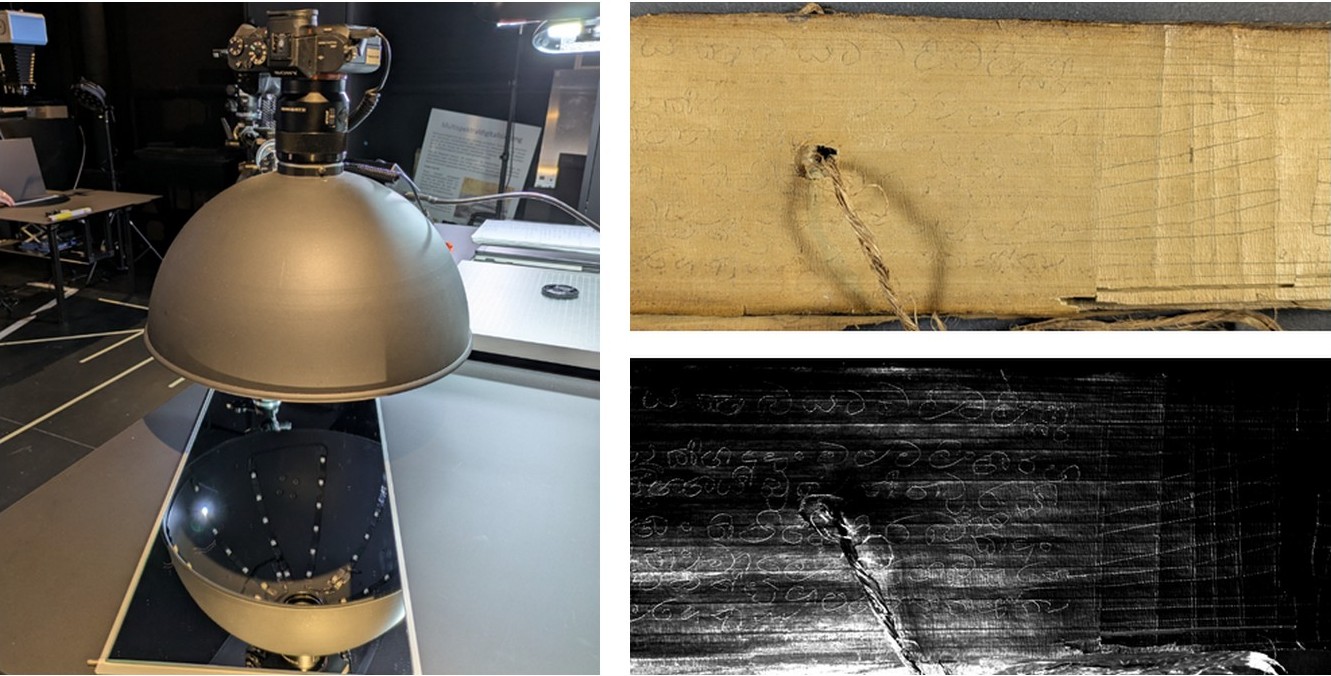

Reflectance Transformation Imaging (RTI) Dome

  • General description: portable RTI dome for non-destructive, non-invasive imaging of the object with an emphasis on topographical features
  • Application aim: creation of a detailed and interactive representation of the object’s topography
    Mobility: mobile; 3 kg in 1 packaging unit (camera and dome)
  • Application requirements:
    • Required space: 50 × 50 cm
    • Light: controlled lighting conditions (no direct sunlight)
    • Climate: 10–35 C (non-condensing)
    • Furniture: 1 regular table, 1 regular chair
    • Electrical power: 5V USB
    • Safety: not advisable to look directly into the LEDs
  • Object limitations: objects A6 or smaller can be imaged in full; subsections of larger objects can be imaged, but the results cannot be stitched
  • Set-up time: 20 min for setup and calibration
  • Average time for measuring: full sequence of 50 images takes 3 min
  • Output: 8-bit JPEG with a resolution of 7968 × 5320 pixels (optional 14-bit RAW)
  • Contact:
    • Ivan Shevchuk (ivan.shevchuk"AT"uni-hamburg.de)
    • Kyle Ann Huskin (kyle.ann.huskin"AT"uni-hamburg.de)
